UPS COVER FRAME 60K - 5,4 min.

UPS COVER FRAME 60K - 5,4 min.

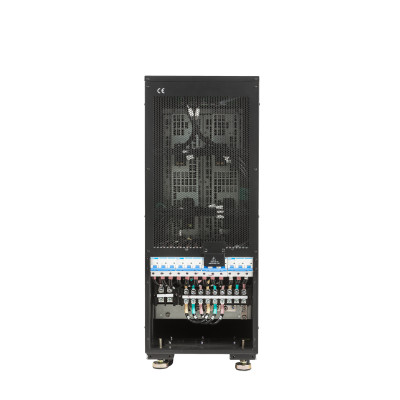

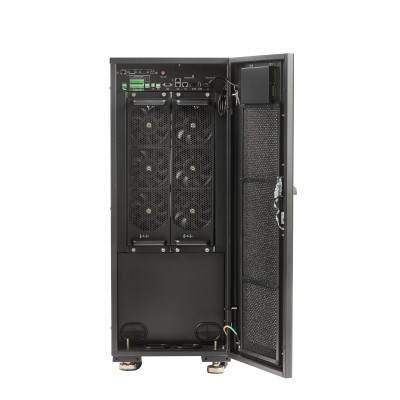

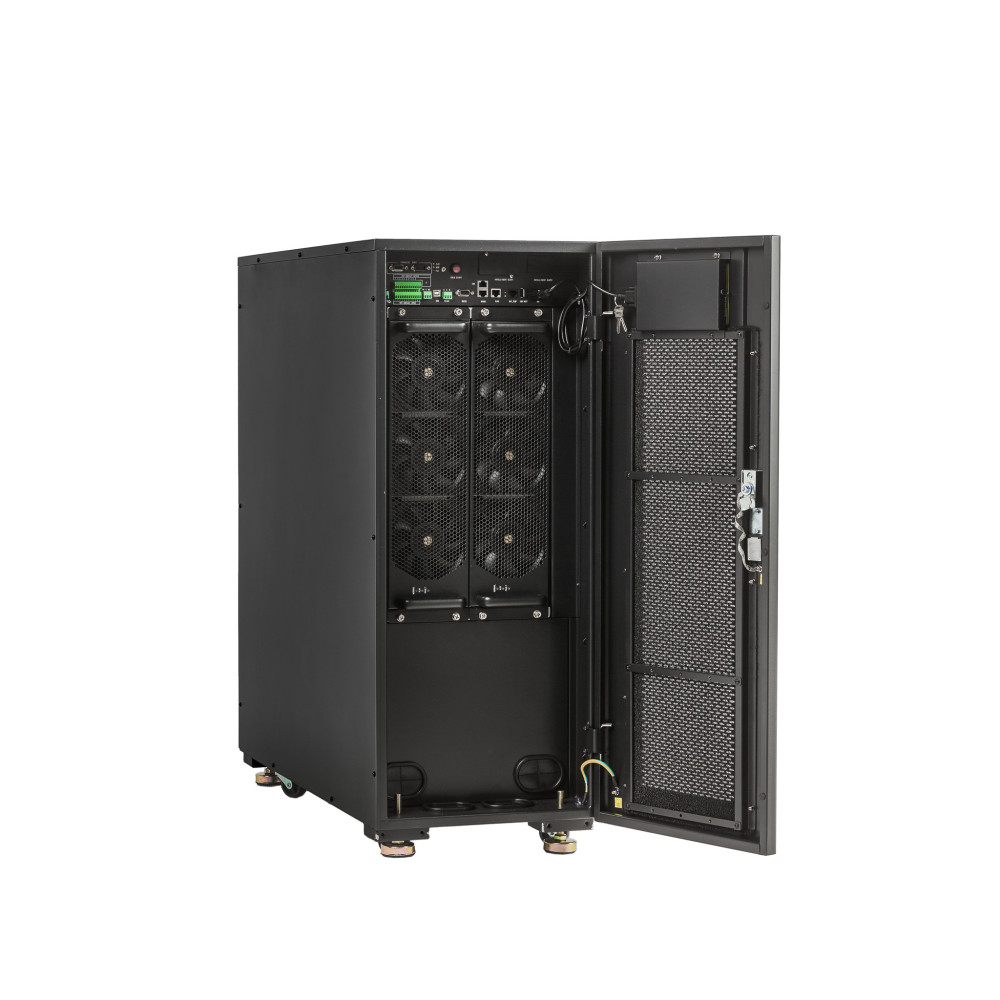

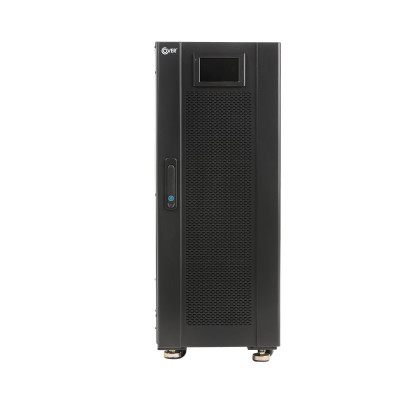

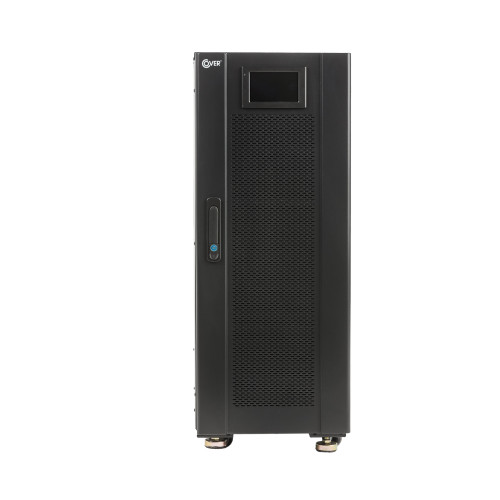

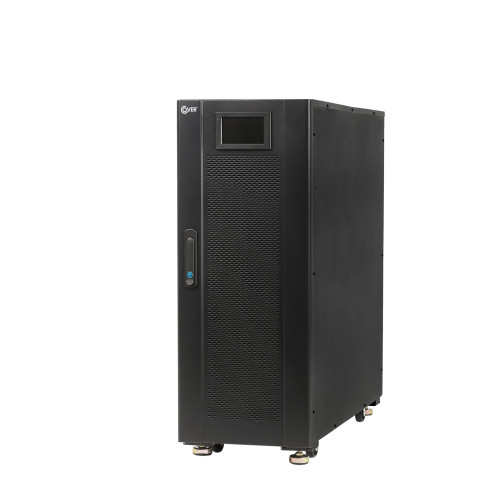

COVER Online Double-Conversion modular power supply, 60kVA/60kW. Cabinet equipped with 2 x 30kW HotSwap power modules. 3:3 phase configuration.

Kit includes C20 battery module, 32 45Ah batteries, battery disconnect switch and connecting cables

11-Z-FRAME 60K-132045

This pack contains

Essential accessories

Communication

AUTONOMY TIME

FRAME 60K Load Autonomy time [min]
32 x 45Ah 100% 5.4
75% 8.6
50% 14.4
25% 32.2

CHARACTERISTICS

  • True OnLine technology Double Conversion provides excellent output voltage performance regardless of power interference and the type of consumers being powered.
  • Modular design ensures that power is matched to loads, enables redundancy, reduces heat loss and facilitates service.
  • Hot Swap Power Modules can be replaced without shutting down the UPS, guaranteeing fast and trouble-free service.
  • IGBT rectifier The most advanced technology providing very low THDi and a high input power factor of 0.99....
  • Automatic bypass - uninterruptible Provides uninterrupted power to consumers in critical situations like overheating or failure.
  • Service bypass allows servicing of equipment without shutting down the powered loads. Separate power supply of the Bypass track gives the possibility to provide a backup power source for the receivers even in case of equipment failure or UPS protection tripping in the main track.
  • Communication interfaces:
  • - USB, RS232, RS485 for reading and monitoring parameters, managing operation and configuring the UPS,
  • - DryContact relay contacts for interfacing with BMS systems
  • - SNMP integration with NMS-type network management systems
  • Remote Fire Switch Connector. (EPO) for providing remote disconnection of power supply to consumers in case of fire,
  • 5.0" LCD color touchscreen control and monitoring panel simplifies UPS operation, allows diagnostics of parameters and operating mode of the power supply, and enables event logging.
  • Very efficient charging system makes the UPS capable of quickly charging battery banks with very large capacities, for long autonomous operation times.
  • High efficiency of the device (>96%) reduces the emitted heat, so that the eventual cooling of the premises is simpler, and UPS operation is much cheaper.
  • ECO-Mode allows a significant reduction in the cost of operation of the device and virtually eliminates heat emission thanks to efficiency >99%.
  • Hibernation mode for parallel operation makes it possible (depending on the configuration) to adjust the number of running power modules and UPS of the parallel system according to the load value. Hibernation of the power modules or UPS reduces heat emission and lowers the noise generated by the system.
  • Conformal coating UPS board protection isolates electronic components from adverse environmental conditions such as moisture, dust and surges.
  • Automatic diagnostics and digital control (32 bit DSP x2) guarantees full efficiency of the device, control of components and operating parameters without user intervention.
  • Redundant fans ensure UPS operation even if 1 or 2 fans fail, with limited output power.
  • Highest output power factor value of 1.0 allows the power supply to be loaded with full active power.
  • Wide input voltage range in normal operation mode ensures stable operation of the device without the need for batteries, which significantly extends their life.
  • Wide input frequency range in normal operation mode allows the power supply to be used freely in a network with unstable parameters and when powered by a generator set.
  • Advanced battery management guarantees optimal charging and utilization of battery banks, increases battery life and reduces operating costs. Temperature compensation function of charging voltage.
  • Excellent output voltage quality achieved through the use of a 3-level IGBT inverter, with the use of advanced PWM control technology makes it possible to deliver a voltage with stable parameters, regardless of energy disturbances and the type of powered devices.
  • High overload capacity Ensures protection of the device and continuity of power supply in the presence of transient transients.
  • Advanced software enabling the user to have full control over the device and the powered loads.
  • Configurability of operating parameters nominal voltages, frequencies, preferred modes of operation, method of communication - greatly expands the range of possible applications.
  • Redundant configurations:
  • - Redundant parallel operation for increased reliability
  • - Capacitive parallel operation for increased power
  • - HotStandby work

TECHNICAL SPECIFICATIONS

Model FRAME 60K
Power factor 60kVA / 60kW
Phases In/Out 3:3
Design Modular Hot-Swap
Number of modules 2 x 30kW
Input
Nominal voltage 380 / 400 / 415 Vac
Voltage range 304 VAC - 485 VAC @ 100% load
Min. 138 VAC - 304 VAC @ 40% - 100% load
Nominal frequency 50 / 60Hz
Frequency range 40 – 70 Hz
THDi <3%
Input power factor ≥0,99
Output
Nominal voltage 380 / 400 / 415 Vac
Power factor 1,0
Voltage regulation statis/dynamic ±1% / ±2%
Nominal frequency 50 / 60 ± 0,05 Hz
Overload caability 105% - 110% - 60 min., 110% - 125% - 10 min., 125% - 150% - 1 min., >150% - 0.2 sec.
Efficiency in OnLine mode >96%
Efficiency in ECO mode 99%
Crest factor 3:1
Switching time 0ms
Batteries
Cold start yes
Type of batteries VRLA, AGM, gel, Li-ion
Batteries range 32 - 44 pcs x 12V
Max charging curent 24A
Charging type 3 – 8 hours up to 90% capacity (configurable)
Charging cycle According to DIN 41773 with automatic charging shutdown according to current and voltage criteria, with time control.
Dimensions and weights
Dimensions (S x G x W) 360 x 850 x 950mm
Weight w/o batteries 130 kg
Signaling and communication ports
Operating status indicator LCD + audible alarm
Communication USB, RS232, RS485, NET, EPO, LBS, Parallel port, DryContact
Environmental conditions
Noise level <65 dB
Operating temperature for UPS 0°C ÷ 40°C
Recommended operating temperature 15 °C ÷ 25 °C
Storage temperature -25°C ÷ 55°C
Humidity 0 ÷ 95% (non-condensing)
Cerifications
Interference immunity EN62040-1:2019, EN62040-3:2011
Safety EN62040-2:2018, CE
Optional accesories
- SNMP card
- Battery temperature compensation kit
- Environmental sensor (EMD)
- Remote Emergency Power Off button
- External maintenance bypass
- Parallel cards
- Remote LCD panel
- Backfeed protection

Due to constant product improvement all specifications are subject to change without notice.

Apparent power [kVA]
60
Active power [kW]
60
Technology:
VFI-SS-111 (OnLine DoubleConversion)
Phase In/Out:
3:3
Output PF:
1
Backup time under 100% load
4 - 10 minutes
