UPS COVER PKX 10K

UPS COVER PKX 10K

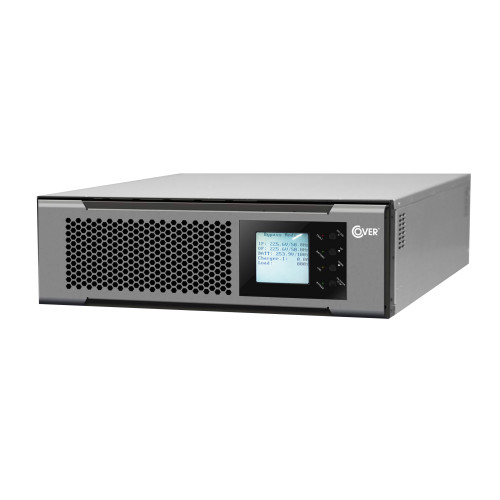

COVER Online Double-Conversion uninterruptible power supply, with a capacity of 10kVA/10kW. HotSwap power modules for rack mounting - parallel operation of up to 10 units (100kW). 3:3 phase configuration.

11-PKX3-0100

CHARACTERISTICS

  • True OnLine technology Double Conversion provides excellent output voltage performance regardless of power interference and the type of consumers being powered.

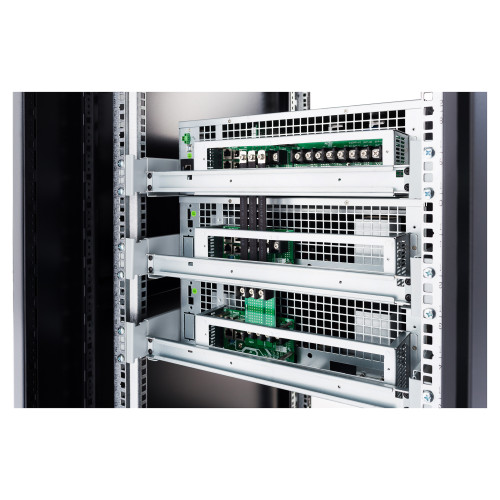

  • Hot Swap modular design improves reliability, reduces service time, and allows system expansion by adding power modules to provide power for increased load power or for increased reliability in an N+1 or N+M configuration.
  • IGBT rectifier The most advanced technology providing very low THDi and high power factor.
  • Automatic bypass - uninterruptible Provides uninterrupted power to consumers in critical situations like overheating or failure.
  • Communication interfaces:
  • - USB for monitoring and managing UPS operation.
  • - SNMP integration with NMS-type network management systems,
  • - Connector for Remote Emergency Power Off. (REPO) for providing remote disconnection of power supply to consumers in case of fire,
  • LCD control and monitoring panel and LED indicator allow diagnostics of the parameters and mode of operation of the PSU and logging of events.

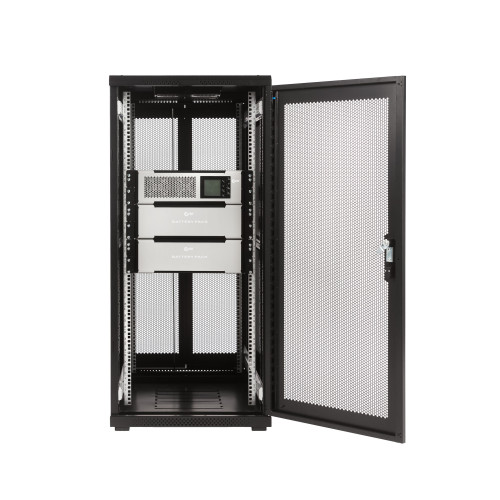

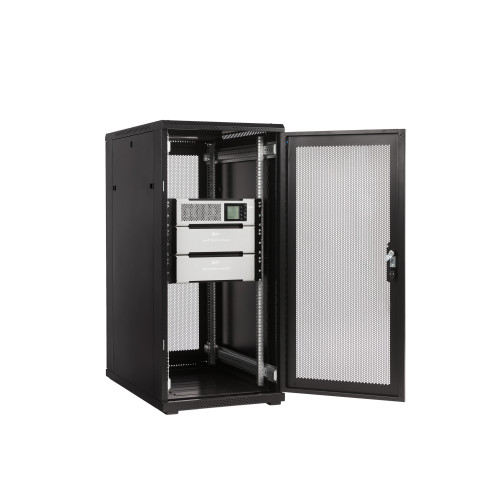

  • Small dimensions modules suitable for installation in standard 19" rack cabinets.
  • High efficiency of the device (>95%) achieved over a wide range of load values, limits the emitted heat, making eventual room cooling simpler and operation cheaper.
  • ECO-Mode allows a significant reduction in the cost of operation of the device and virtually eliminates the emission of heat.
  • Advanced software enabling the user to have full control over the device and the powered loads.
  • Configurability of operating parameters nominal voltages, frequencies, preferred modes of operation, method of communication - greatly expands the range of possible applications.
  • Automatic diagnostics and digital control guarantees full efficiency of the device, control of components and operating parameters without user intervention.
  • High input power factor value of 0.99 limits the value of the current drawn by the device from the network.
  • High output power factor of 1.0 allows the power supply to be loaded with full active power.
  • Wide input voltage range in normal operation mode ensures stable operation of the device without the need for batteries, which significantly extends their life.
  • Wide input frequency range in normal operation mode allows the power supply to be used freely in a network with unstable parameters and when powered by a generator set.
  • Ease of use The ease of connection to the network and the simple switching on and off of the device does not require special qualifications from the user.
  • Advanced battery management guarantees optimum charging and utilization of battery banks, increases battery life and reduces operating costs.
  • Battery start ensures that the UPS can be turned on even when the mains power is not available.
  • Excellent output voltage quality achieved through the use of a 3-level IGBT inverter, with the use of advanced PWM control technology makes it possible to deliver a voltage with stable parameters, regardless of energy disturbances and the type of powered devices.
  • Redundant parallel operation Can be used in redundant parallel operation for increased power or reliability (N+1, N+M).

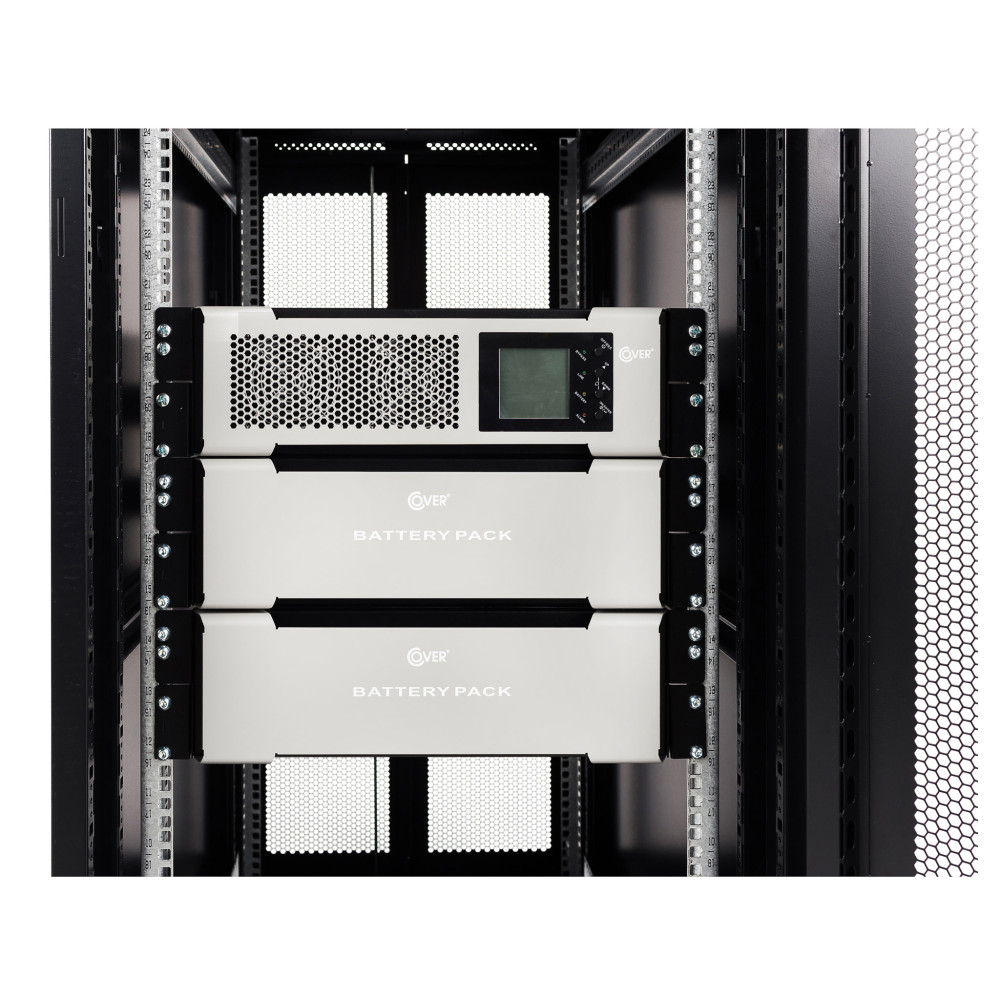

BACKUP TIME

EBM PKX Load Backup time [min]
PKX 10K
UPS +2xEBMs (40x9Ah) 100% 11
75% 17
50% 29
25% 65
UPS + 4xEBMs (2x40x9Ah) 100% 29
75% 42
50% 65
25% 171
UPS + 6xEBMs (3x40x9Ah) 100% 48
75% 65
50% 133
25% 252
UPS + 8xEBMSs (4x40x9Ah) 100% 65
75% 111
50% 171
25% 413

TECHNICAL SPECIFICATIONS

Model PKX 10K
Power factor 10kVA / 10kW
Phases In/Out 3:3
Design Rack/Tower
Input
Nominal voltage 380 / 400 / 415 Vac
Voltage range 190 ÷ 520 VAC @ load <50%
305 ÷ 520 VAC @ load 100%
Nominal frequency 50 / 60Hz
Frequency range 40 ÷ 70 Hz
THDi <3%
Input power factor ≥0,99
Output
Nominal voltage 380 / 400 / 415 Vac
Power factor 1,0
Voltage regulation statis/dynamic ±1% / ±3%
Nominal frequency 50 / 60 ± 0,1 Hz
Overload caability 110% - 30 min., 130% - 5 min., 150% - 10 s., >150% - 200ms.
Efficiency in OnLine mode 95%
Efficiency in ECO mode 98%
Crest factor 3:1
Switching time 0ms
Batteries
Cold start yes
Type of batteries VRLA, AGM, gel
Batteries range 32 - 40 pcs x 12V
Max charging curent 4A
Charging type 3 – 8 hours up to 90% capacity (configurable)
Charging cycle According to DIN 41773 with automatic charging shutdown according to current and voltage criteria, with time control.
Dimensions and weights
Dimensions (S x G x W) 418 x 635 x 132 (3U)
Weight w/o batteries 20,0 kg
Signaling and communication ports
Operating status indicator LCD + LED + alarm dźwiękowy
Communication USB, EPO, slot SNMP
Environmental conditions
Noise level <55 dB @ load 100%
Operating temperature for UPS 0°C ÷ 40°C
Recommended operating temperature 15 °C ÷ 25 °C
Storage temperature -20°C ÷ 40°C
Humidity 0 ÷ 95% (non-condensing)
Cerifications
Interference immunity EN62040-2:2016
Safety EN62040-1:2017, EN62040-3:2011, CE
Optional accesories
- SNMP card
- RS485 (Modbus) card
- AS 400 mini (dry-contact) card
- Environmental sensor (EMD)
- Remote Emergency Power Off button
- External maintenance bypass
- Remote LCD panel

Due to constant product improvement all specifications are subject to change without notice.

Apparent power [kVA]
10
Active power [kW]
10
Technology:
VFI-SS-111 (OnLine DoubleConversion)
Phase In/Out:
3:3
Output PF:
1

Download

Datasheet PKX 10K [ENG]

Download (589.98KB)

User Manual PKX 10K [ENG]

Download (1.3MB)
